Product
Legion Pro 7 16IRX9H
Processor
Intel® Core™ i9-14900HX, 24 Cores (8 P-core + 16 E-core), 32 Threads, 36MB Cache, Base Frequency: P-core 2.2GHz / E-core 1.6GHz, Max Frequency: P-core 5.8GHz / E-core 4.1GHz
Graphics
NVIDIA® GeForce RTX™ 4080 12GB GDDR6, Boost Clock 2280MHz, TGP 175W, 542 AI TOPS
Chipset
Intel HM770 Chipset
Memory
32GB (2x 16GB SO-DIMM DDR5-5600)
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
2TB (2x 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®)
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers (super linear speaker), 2W x2, audio by HARMAN, optimized with Nahimic Audio, Smart Amplifier (AMP)
Camera
FHD 1080p with E-shutter
Battery
Integrated 99.9Wh
Power Adapter
330W Slim Tip Tiny GaN (3-pin)
Special Features

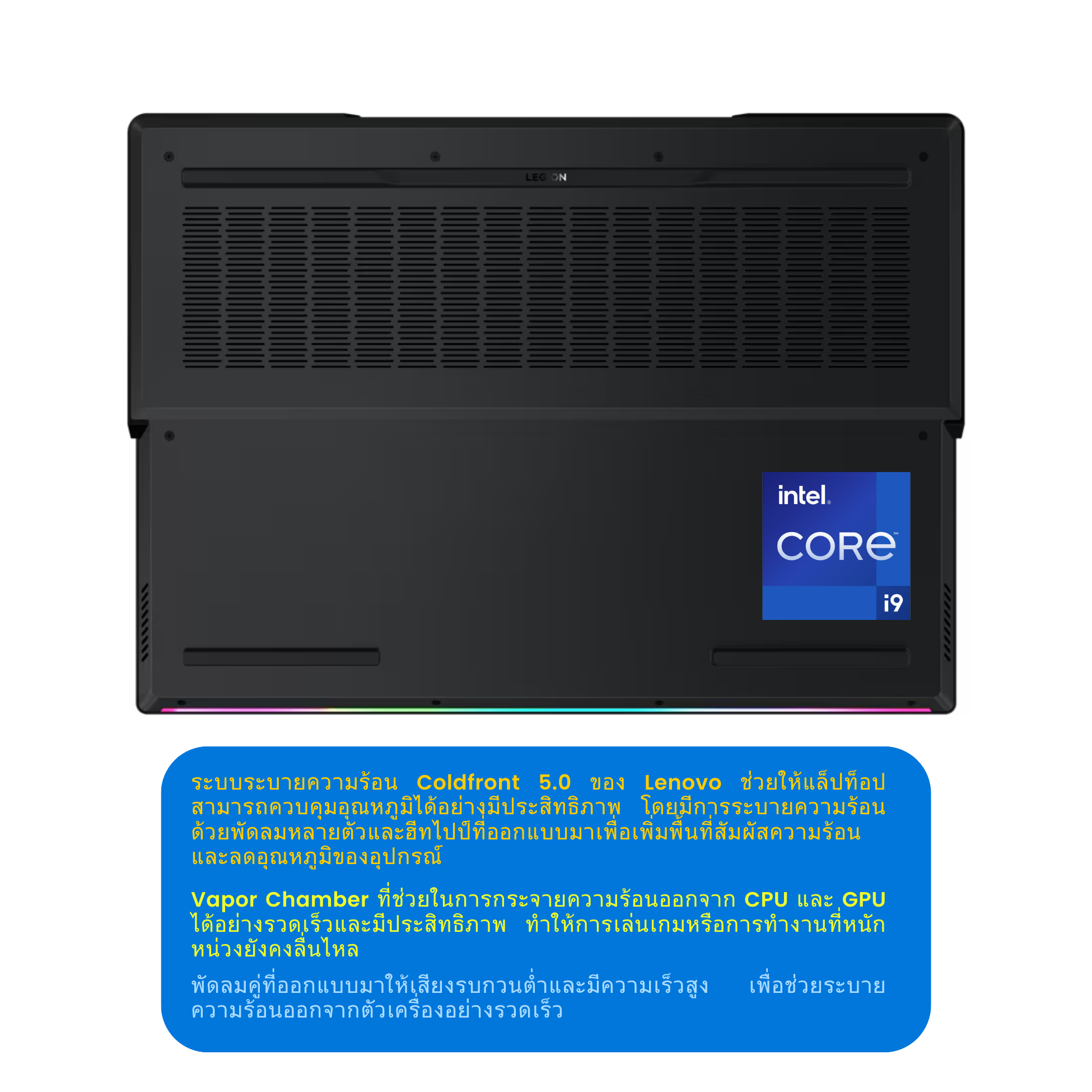

AI Chip: LA2-Q, Hybrid thermal solution (air cooling + liquid metal)
Display
16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, none Touch
Color Calibration
Factory Color Calibration

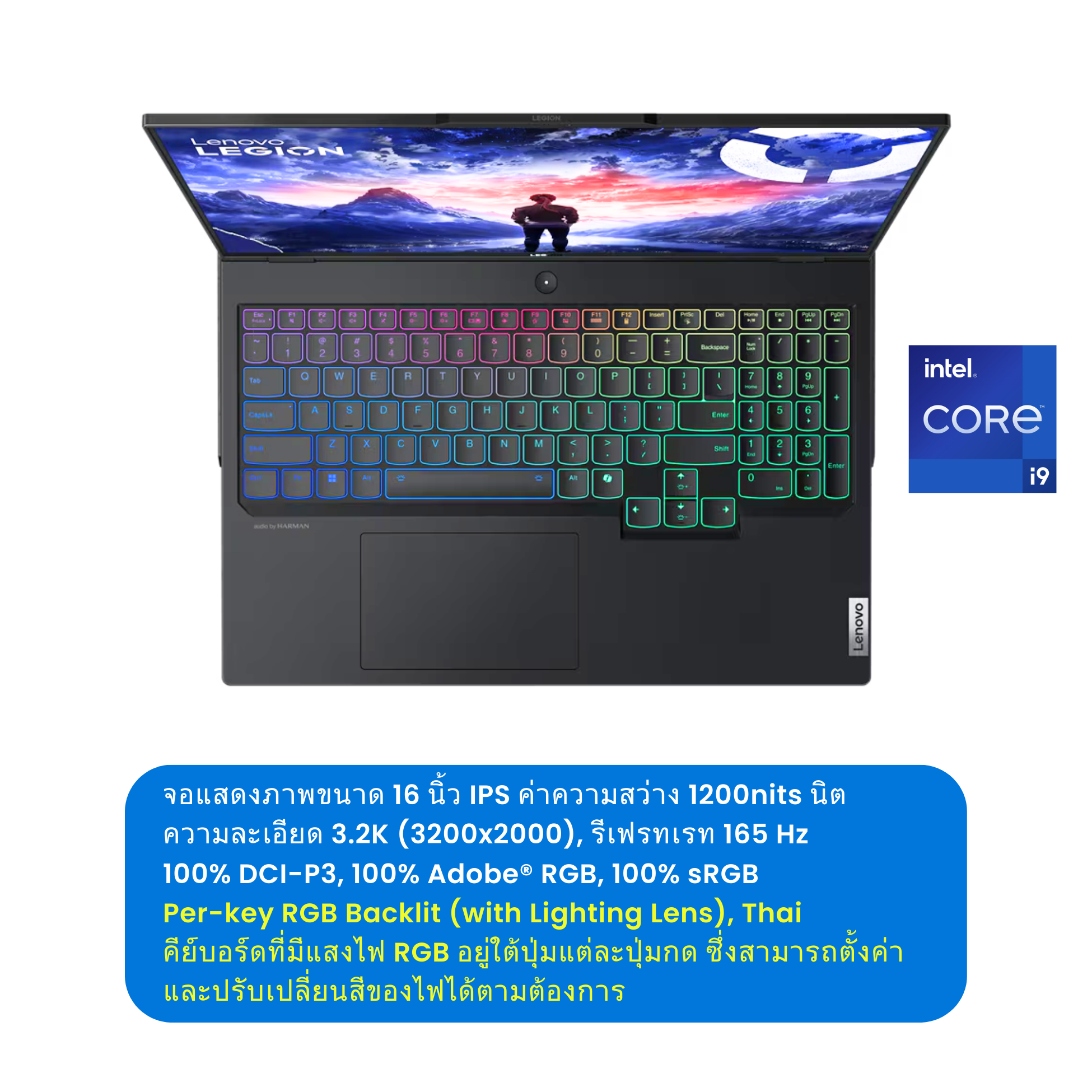

Keyboard
Per-key RGB Backlit (with Lighting Lens), Thai
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Material
Aluminium (Top), Aluminium (Bottom)
Operating System
Windows 11 Home Single Language, English

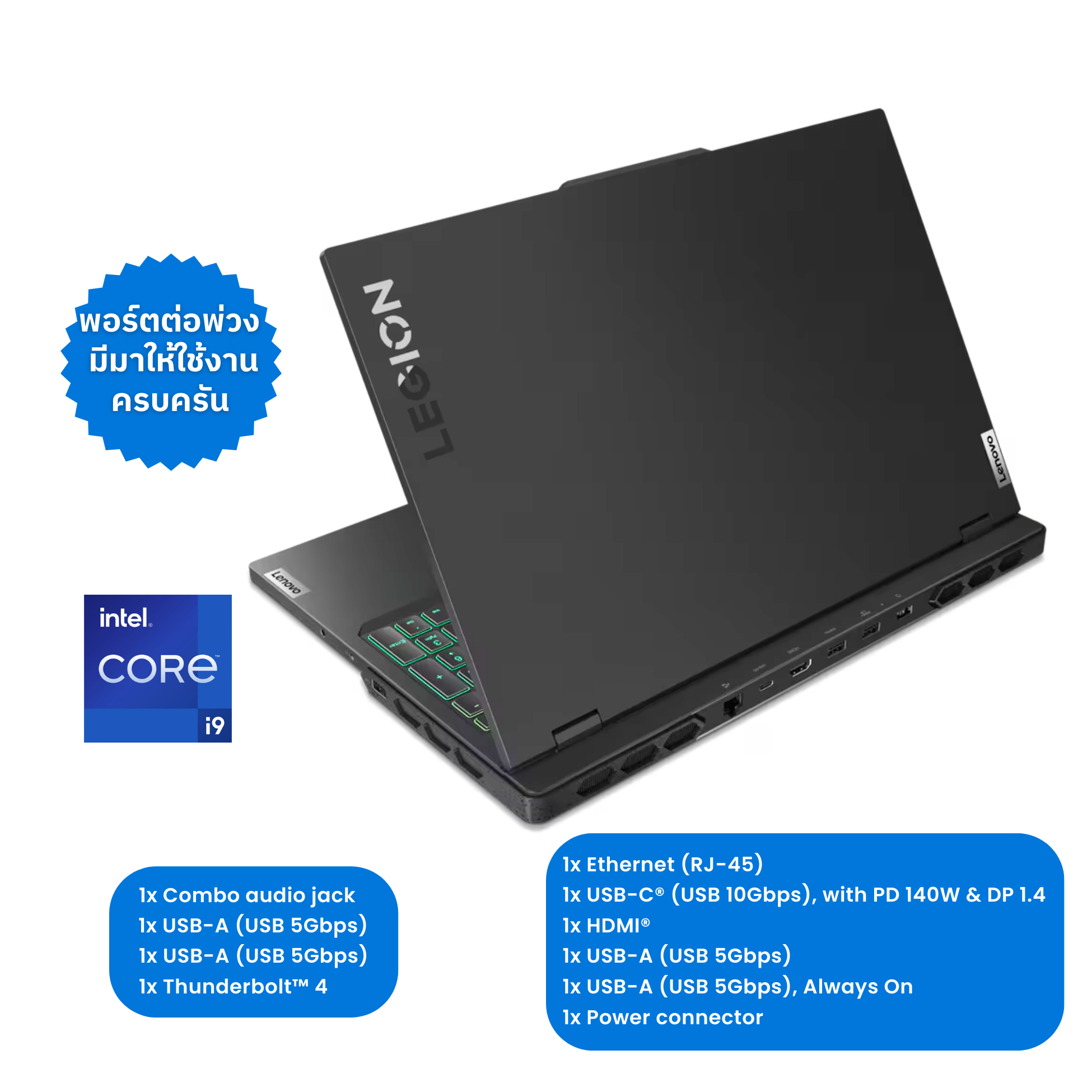

Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth
Intel Killer Wi-Fi 6E AX1675i, 11ax 2x2 + BT5.3
Security Chip
Firmware TPM 2.0 Enabled
Warranty
4Y Legion Ultimate Support เบอร์โทร On-site service +66 2028-1508, 1800 012 251
Bundled Accessories
4 Switchable Keycaps and Easy Tool
Green Certifications
ErP Lot 3, RoHS compliant
Other Certifications
TÜV Rheinland® High Gaming Performance, TÜV Rheinland® Low Blue Light (Hardware Solution)
Size
14.31 x 10.32 x 1.02 cm
