Product

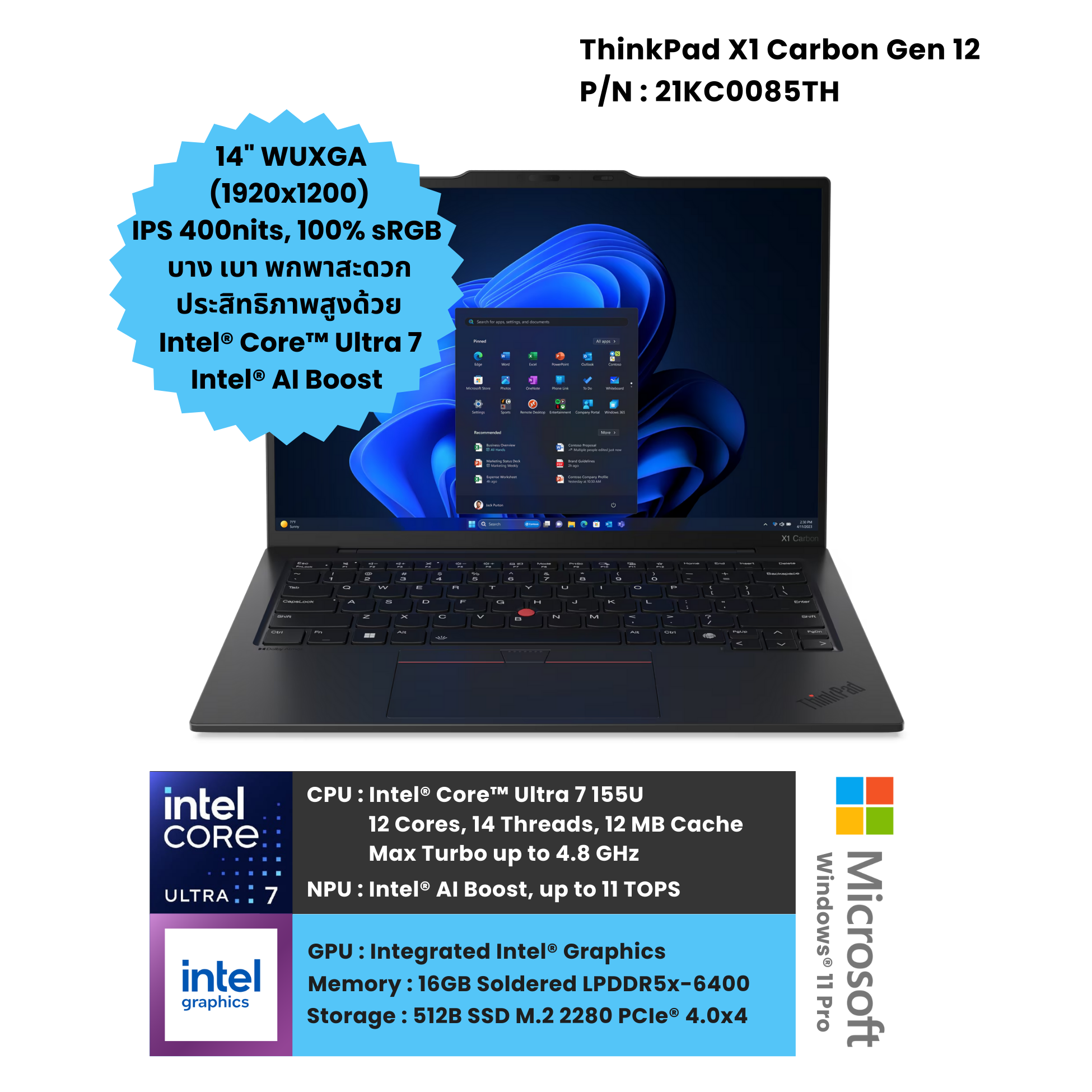

ThinkPad X1 Carbon Gen 12
Processor
Intel Core Ultra 7 155U, 12 Cores (2 P-core + 8 E-core + 2 LPE-core), 14 Threads, 12MB Cache, Base Frequency: P-core 1.7GHz / E-core 1.2GHz / LPE-core 700MHz, Max Frequency: P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.1GHz
NPU
Intel® AI Boost, up to 11 TOPS
Graphics
Integrated Intel Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR5x-6400
Memory Slots
Memory soldered to systemboard, no slots, 8-channel
Max Memory
16GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0
Storage Slot
One M.2 2280 PCIe® 4.0 x4 slot
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos®

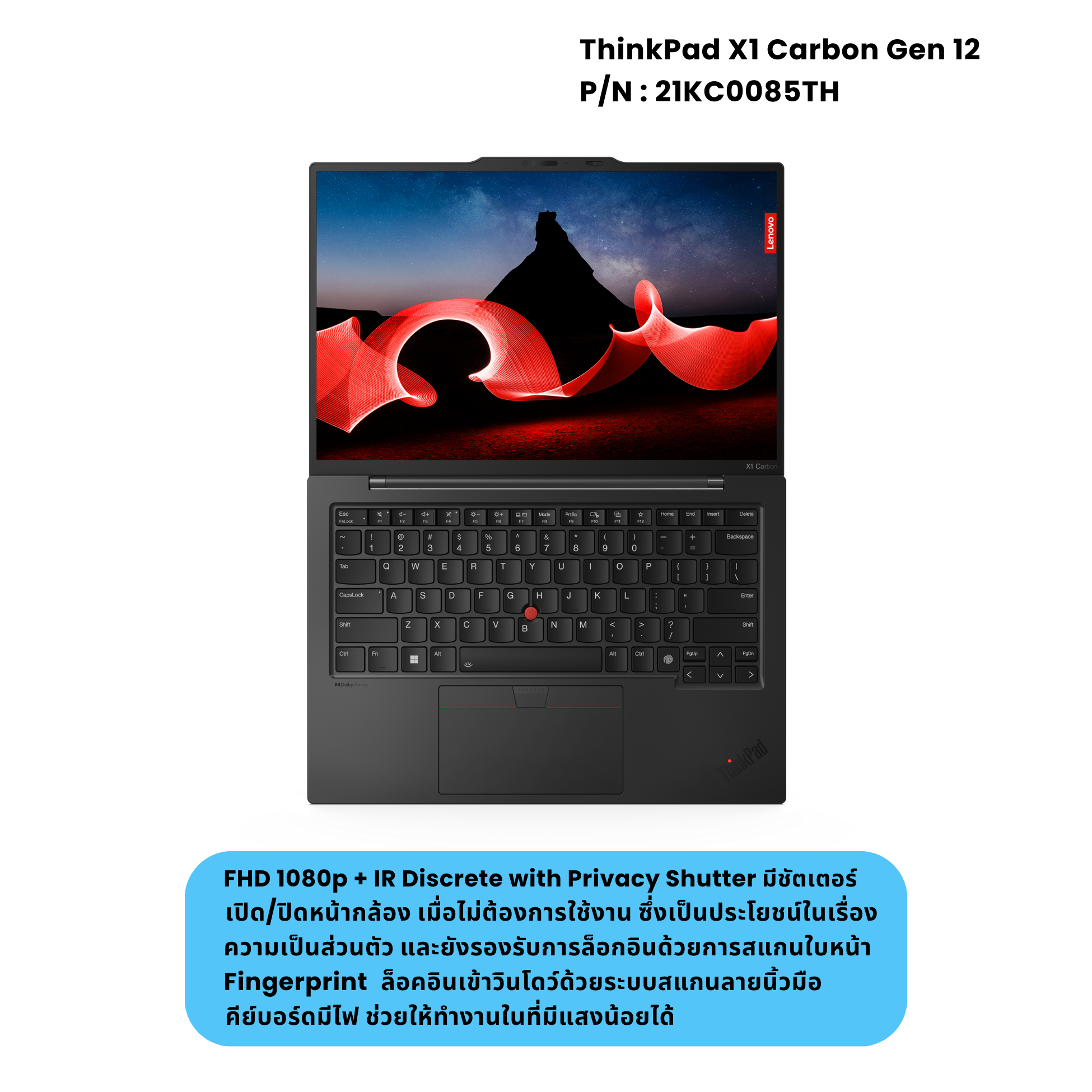

Camera
FHD 1080p + IR Discrete with Privacy Shutter
Battery
Integrated 3Cell, 57Wh
Power Adapter
65W USB-C (3-pin)
Display
14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Low Power, none Touch
Case Material
Carbon Fiber (Top), Aluminium (Bottom)
Operating System
Windows 11 Pro, English
Bundled Software
Intel Connectivity Performance Suite
Ethernet
No Onboard Ethernet
WLAN + Bluetooth
Intel Wi-Fi 6E AX211, 11ax 2x2 + BT5.3
Security Chip
Discrete TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Match-on-Chip, in Keyboard Key
Other Security
IR camera for Windows® Hello (facial recognition), Ultrasonic Human Presence Detection (FHD 1080p + IR camera models), Camera privacy shutter
Warranty
3Y Premier Support Plus (Include Add 3Y Accidental Damage Protection, 3Y Sealed Battery coverage, 3Y Keep Your Drive, 3Y International Service Entitlement) เบอร์โทร +66 2104 0791, 1800 012 250
Green Certifications
ENERGY STAR® 8.0, EPEAT™ Gold Registered, ErP Lot 6/26, RoHS compliant, TCO Certified 9.0
Other Certifications
Intel® Evo™ Platform, Eyesafe® Certified 2.0
Mil-Spec Test
MIL-STD-810H military test passed
Size
312.8 x 14.96 x 214.75 mm
